PHAsisX

The Pocket Sized Phased Array Spot Weld Inpection Boxs

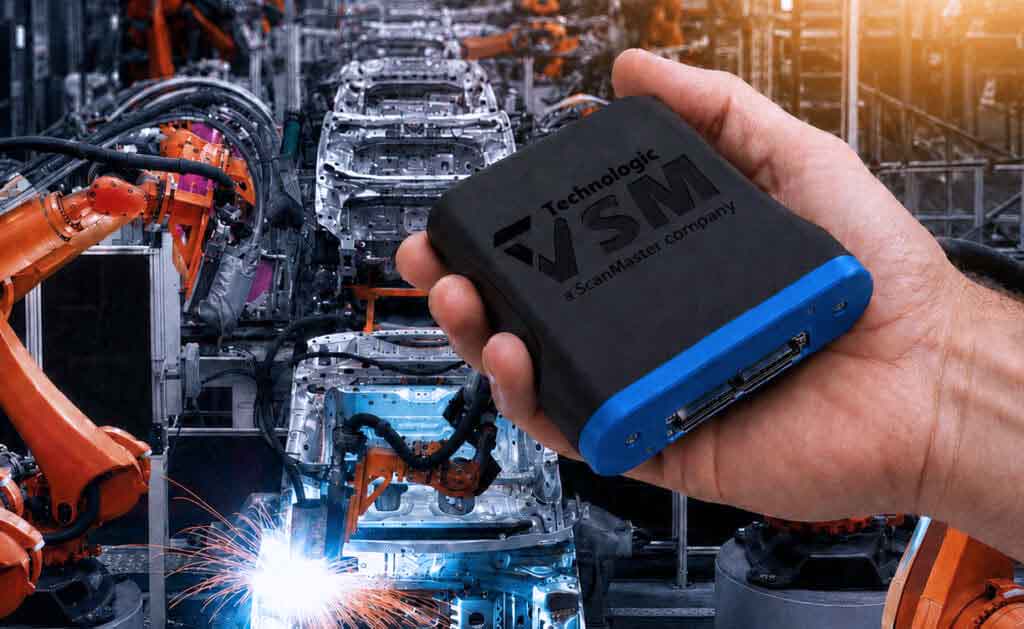

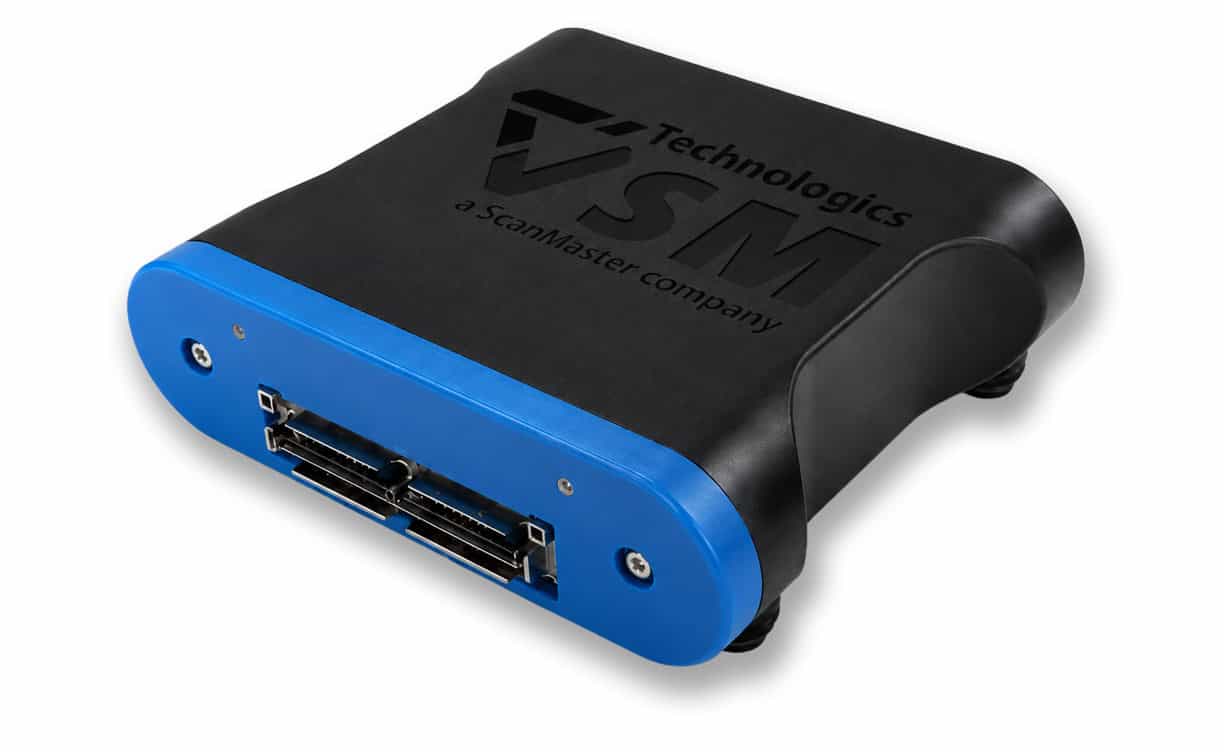

Everything the PHAsis platform delivers – in a box that fits in your bag. PHAsisX is a small, lightweight Phased-Array unit for non-destructive resistance spot-weld inspection. Connect it to any laptop or tablet over a single USB cable, add a probe and couplant, and you have a full imaging inspection system ready to travel.

At a Glance

  • Single USB-cable connection to your own PC or tablet
  • Compatible with 9X9 standard spot-weld probe
  • Runs the PHAsis and UT/x imaging & evaluation software

Features

  • Phased array imaging
    produces a true D-Scan image of the weld nugget, not just an OK/NOK verdict
  • Full probe compatibility
    Compatible with 9X9 standard spot-weld probe
  • PHAsis software
    same imaging, test-planning and evaluation environment as the PHAsis family
  • Compact & lightweight
    a true “grab and go” box – the smallest member of the PHAsis family

From Signal To Decision​

  • Matrix probe elements cover the full spot-weld area in a single placement

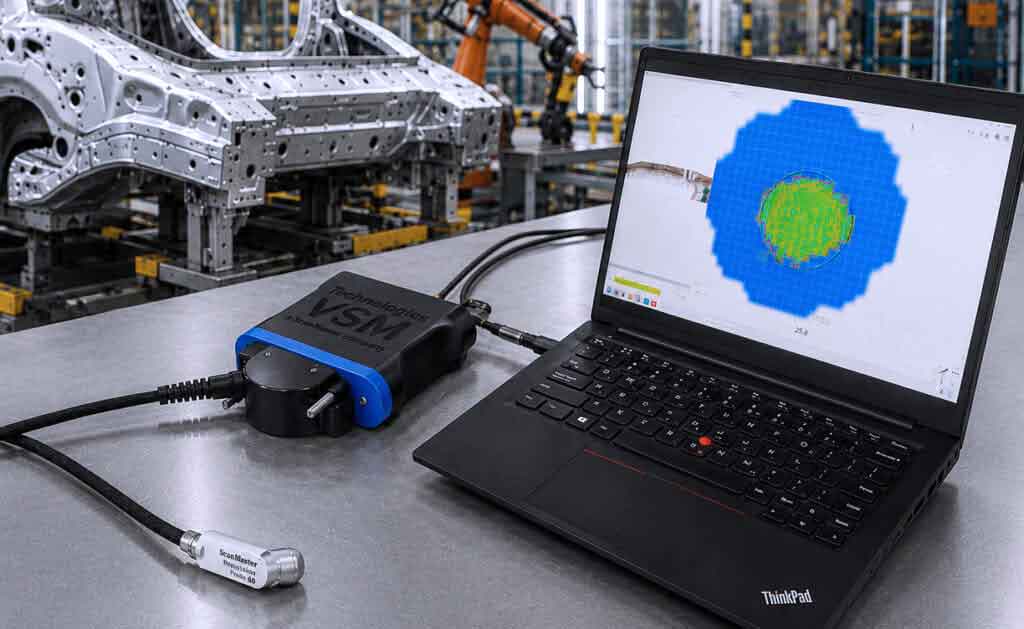

  • The software renders the nugget as a colour D-Scan and supports automatic evaluation
  • Imaging reduces reliance on operator interpretation of raw A-scan traces

Full Backward Compatibility​

Works seamlessly with all PHAsis and UT/x systems for straightforward upgrades and uninterrupted operation.

Benefits

  • Maximum portability
    One small box plus a USB cable. Easy to ship, easy to stock, easy to take to any line or inspection station
  • See the weld
    Imaging results make weld-nugget quality visible and easier to interpret than single channel A-scans
  • Lower barrier to adopt
    Customers use hardware they already own, reducing the cost and footprint of getting started
  • Minimized Downtime
    Compact and easy to stock, PHAsisX allows local spare availability-reducing downtime to near zero with instant system swap when needed

Want to Learn More?

Download The UT/X Brochure Now!

Download PDF
